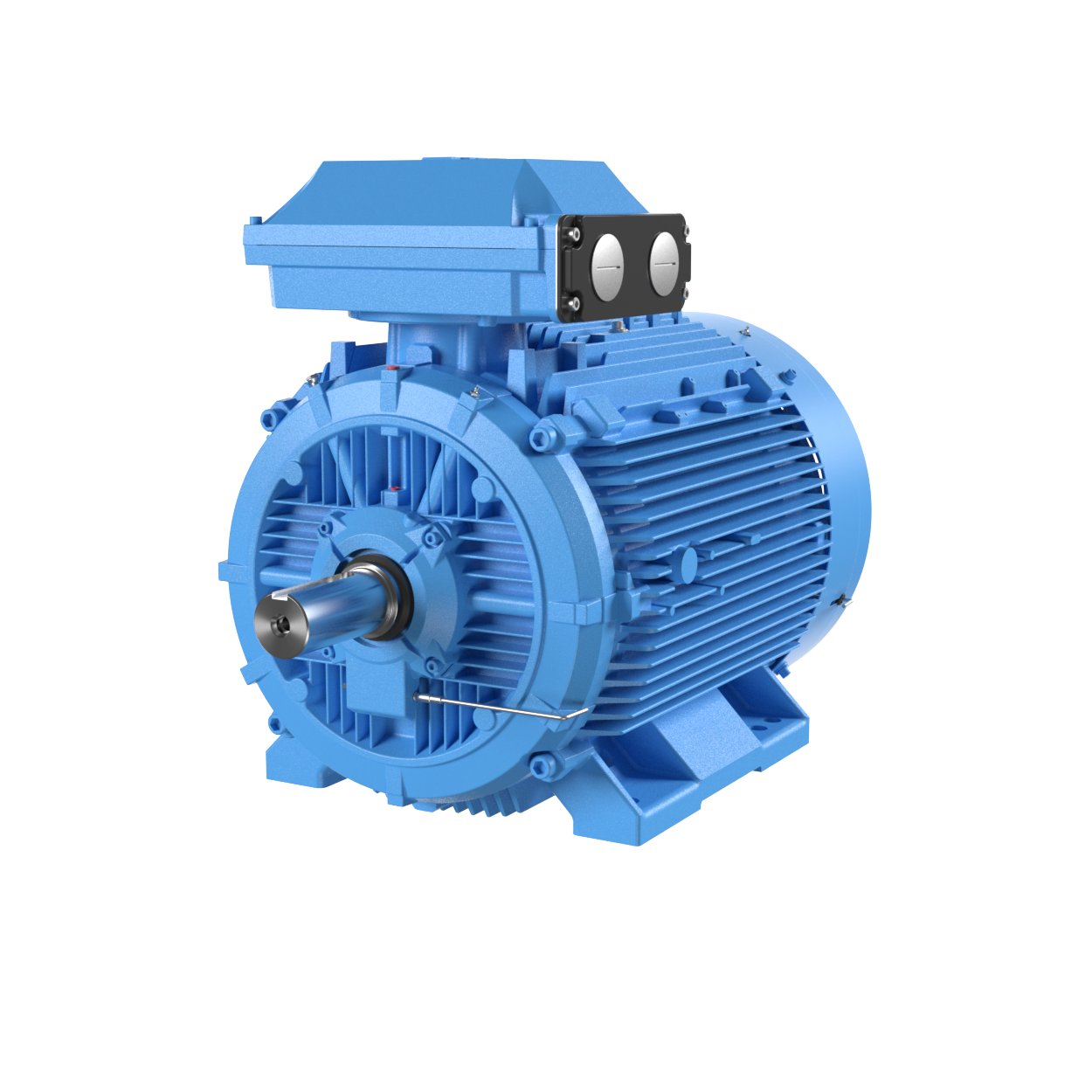

ABB M3GP100LA2

Series: Other models

Source: https://www.abb.com/global/en/products/3gbp282230-adk

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M3GP100LA2 is a three-phase induction motor from the ABB range. The rated output is 3 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 100 L in foot-mounted form. The protection class is IP55, IP56 and IP65. The efficiency is 85.3 per cent at full load, 86.5 per cent at 75 per cent load and 86.6 per cent at half load. The motor weighs 65 kg. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: Finland and Poland. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3GP100LA2 sits at the bottom of that range with 3 kW. Its immediate neighbours are the M3MA 90 MB 2 below it with 2.2 kW and the M2BA 112 MB 4B above it with 4 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine family	M3correct
Engine families	M3correct
Rated output	3 kWcorrect

Dimensions and weights

Weight	65 kgcorrect

Electrical data

Number of poles	2correct
Protection class	IP55, IP56, IP65correct
Frame size	100 L (foot)correct
Mounting (IEC 60034-7)	B3, B5, B8, B35, V1, V3, V5, V6correct
Efficiency at full load	85.3 %correct
Efficiency at 75 % load	86.5 %correct
Efficiency at half load	86.6 %correct

Origin and approval

Country of manufacture	Finland, Polandcorrect
Standard applied	Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test method	IEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3GP100LA2 have?

The ABB M3GP100LA2 delivers 3 kW.

What to check before buying

Match the data plate against the order: frame size, mounting and rating have to agree.
Check the ingress rating against the installation site — outdoors or in dust the demands differ.
Hold the mounting form and dimensions against the existing seat before ordering.
The pole count sets the speed — when replacing an older unit, compare this first.
For used units, ask about winding condition and bearing play.
Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
