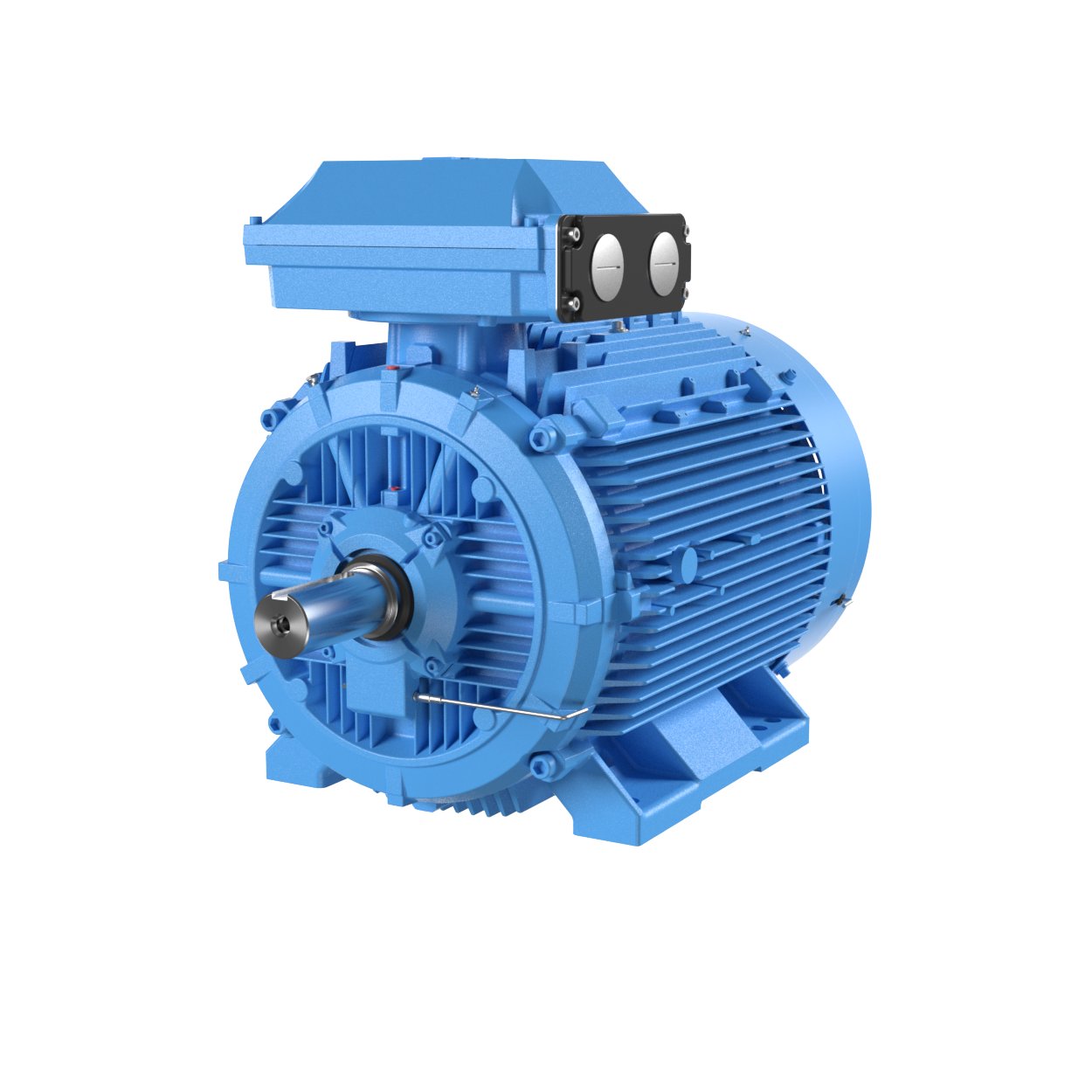

ABB M3GP/M4GP280SMC2

Series: M3GP

Source: https://www.abb.com/global/en/products/3gbp311410-adk

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The M3GP/M4GP280SMC2 from ABB is a three-phase induction motor. The rated output is 90 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 280. The protection class is IP55, IP56 and IP65. The efficiency is 96.5 per cent at full load, 96.4 per cent at 75 per cent load and 95.9 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: Finland and Poland. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3GP/M4GP280SMC2 sits in the middle of that range with 90 kW. Its immediate neighbours are the M3BP225SMD2 below it with 80 kW and the M3AA250SMC2 above it with 94 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine familyM3/M4correct
Engine familiesM3/M4correct
Rated output90 kWcorrect

Electrical data

Number of poles2correct
Protection classIP55, IP56, IP65correct
Frame size280correct
Mounting (IEC 60034-7)B3, B5, B8, B35, V1, V3, V5, V6correct
Efficiency at full load96.5 %correct
Efficiency at 75 % load96.4 %correct
Efficiency at half load95.9 %correct

Origin and approval

Country of manufactureFinland, Polandcorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3GP/M4GP280SMC2 have?

The ABB M3GP/M4GP280SMC2 delivers 90 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
