ABB M3BPP280SMB

Series: Other models

Source: https://ru.made-in-china.com/co_shiny-control/product_M2bax1

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

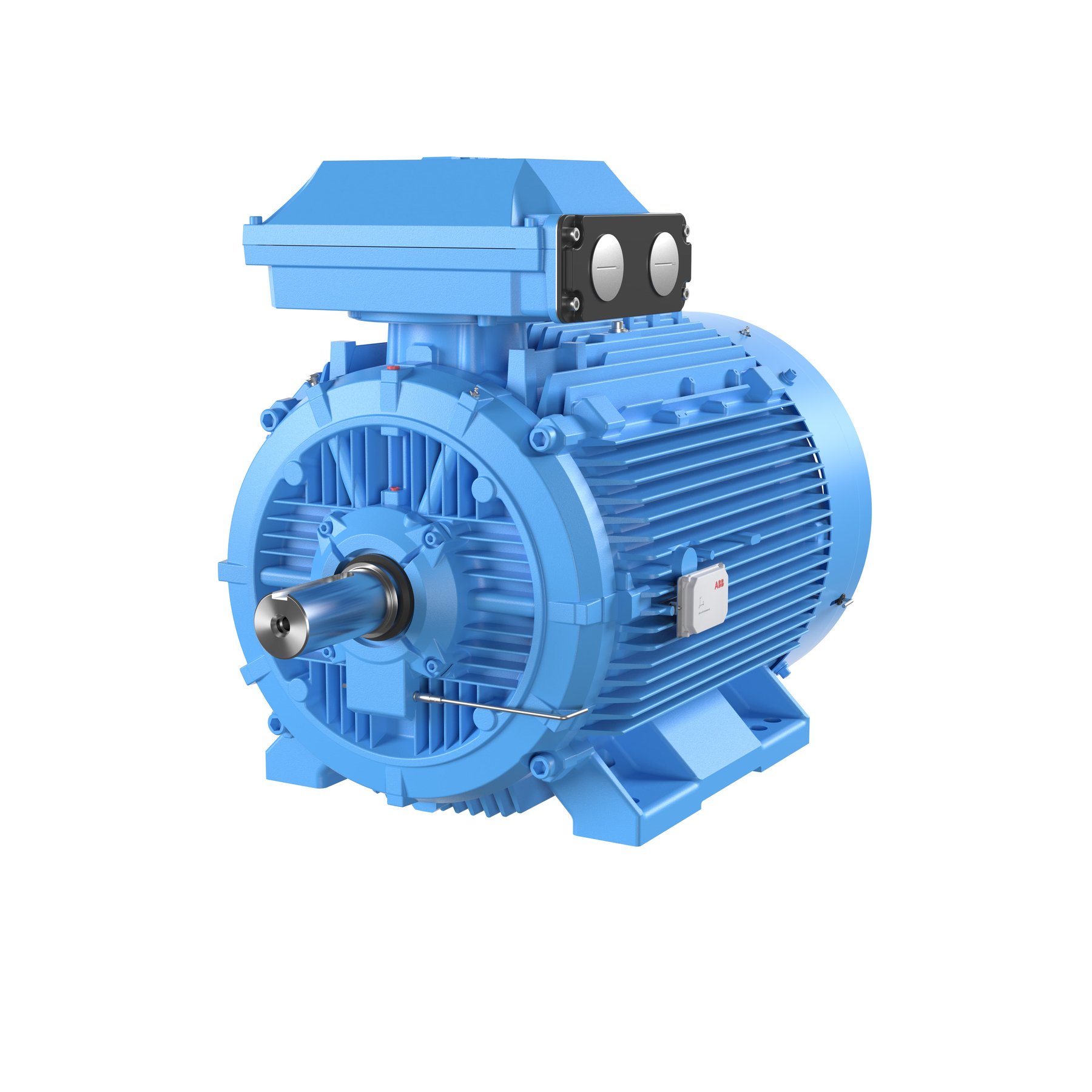

The M3BPP280SMB from ABB is a three-phase induction motor. The rated output is 75 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 280 S in foot-mounted form. The protection class is IP55. The efficiency is 95.4 per cent at full load, 94.8 per cent at 75 per cent load and 94.2 per cent at half load. The motor weighs 665 kg. At full load it delivers 241 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Finland. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the ABB range ranges from 0.75 to 185 kW; the M3BPP280SMB sits in the middle of that range with 75 kW. Its immediate neighbours are the M3AA225SMD4 below it with 73 kW and the M3AA/BP 225 SMD 2 above it with 80 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.

Technical data

Engine

Rated output75 kWcorrect

Dimensions and weights

Weight665 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size280 S (foot)correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load95.4 %correct
Efficiency at 75 % load94.8 %correct
Efficiency at half load94.2 %correct

Origin and approval

Country of manufactureFinlandcorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the ABB M3BPP280SMB have?

The ABB M3BPP280SMB delivers 75 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
