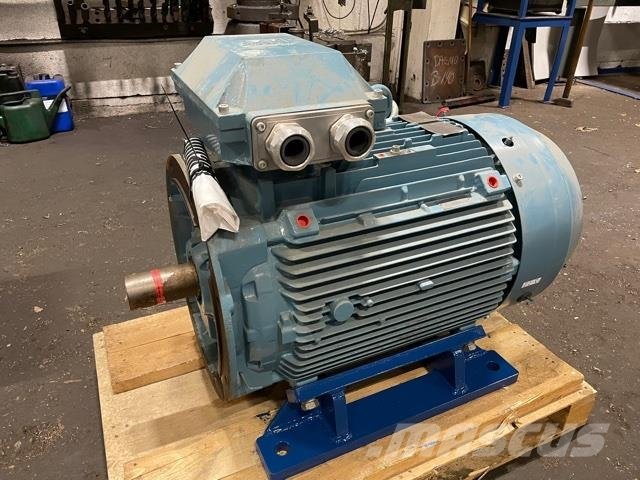

ABB M3BP280SMC4

ABB lists the M3BP280SMC4 as a three-phase induction motor. The rated output is 110 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 280. The protection class is IP55, IP56 and IP65. The efficiency is 95.5 per cent at full load, 95.8 per cent at 75 per cent load and 95.5 per cent at half load. The motor weighs 725 kg. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: Finland, China and Poland. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3BP280SMC4 sits in the middle of that range with 110 kW. Its immediate neighbours are the M3AA250SMC4 below it with 95 kW and the M2BA 315MLA 6L above it with 132 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.
