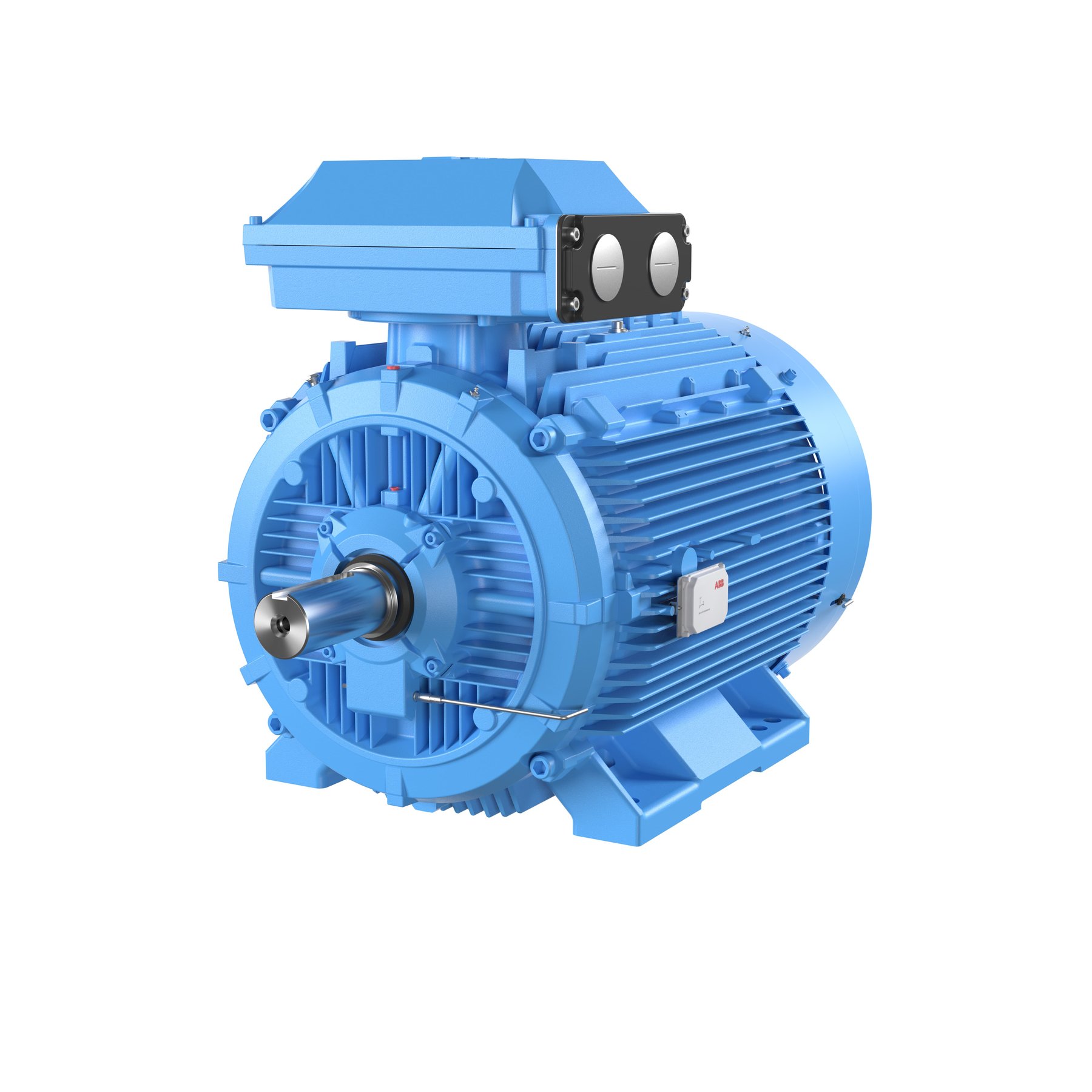

ABB M3BA112MB6

The ABB M3BA112MB6 is a three-phase induction motor built by ABB. The rated output is 2.2 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 400 V. The housing is frame size 112 MB in foot-mounted form. The protection class is IP55. The efficiency is 82.5 per cent at full load, 83.8 per cent at 75 per cent load and 81.7 per cent at half load. The motor weighs 44 kg. At full load it delivers 22.1 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B34, B35 and B14. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3BA112MB6 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the M3BP 112MJ 6L below it with 2 kW and the M2BA 100 LE 4B above it with 3 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.
