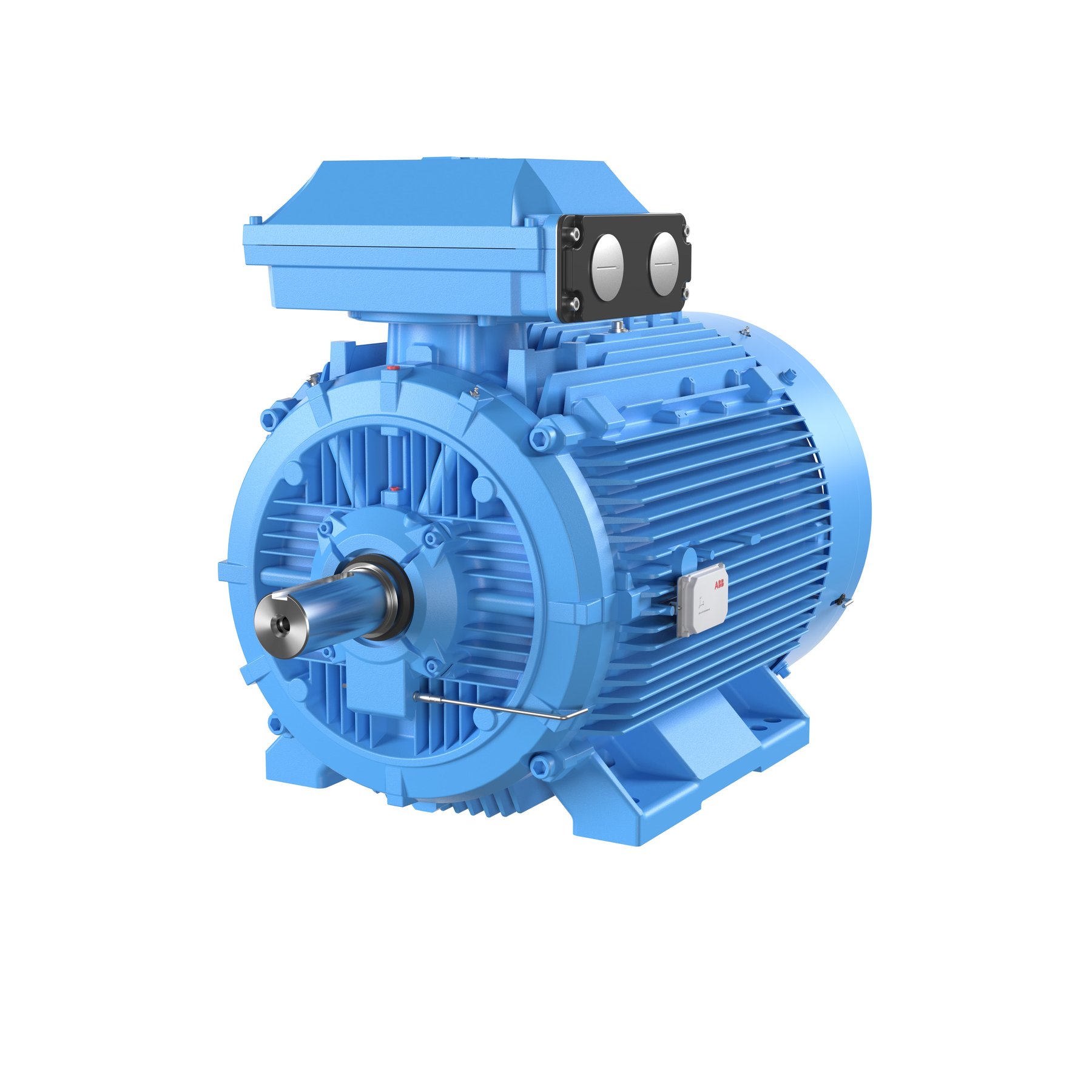

ABB M3APP180M4

ABB lists the M3APP180M4 as a three-phase induction motor. The rated output is 18.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 180 M in foot-mounted form. The protection class is IP55. The efficiency is 92.5 per cent at full load, 93.4 per cent at 75 per cent load and 93.6 per cent at half load. The motor weighs 141 kg. At full load it delivers 120 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Sweden. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the ABB range ranges from 0.75 to 185 kW; the M3APP180M4 sits at the bottom of that range with 18.5 kW. Its immediate neighbours are the M3KP200MLA8 below it with 15 kW and the M2BA 180MLA 2G above it with 22 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.
