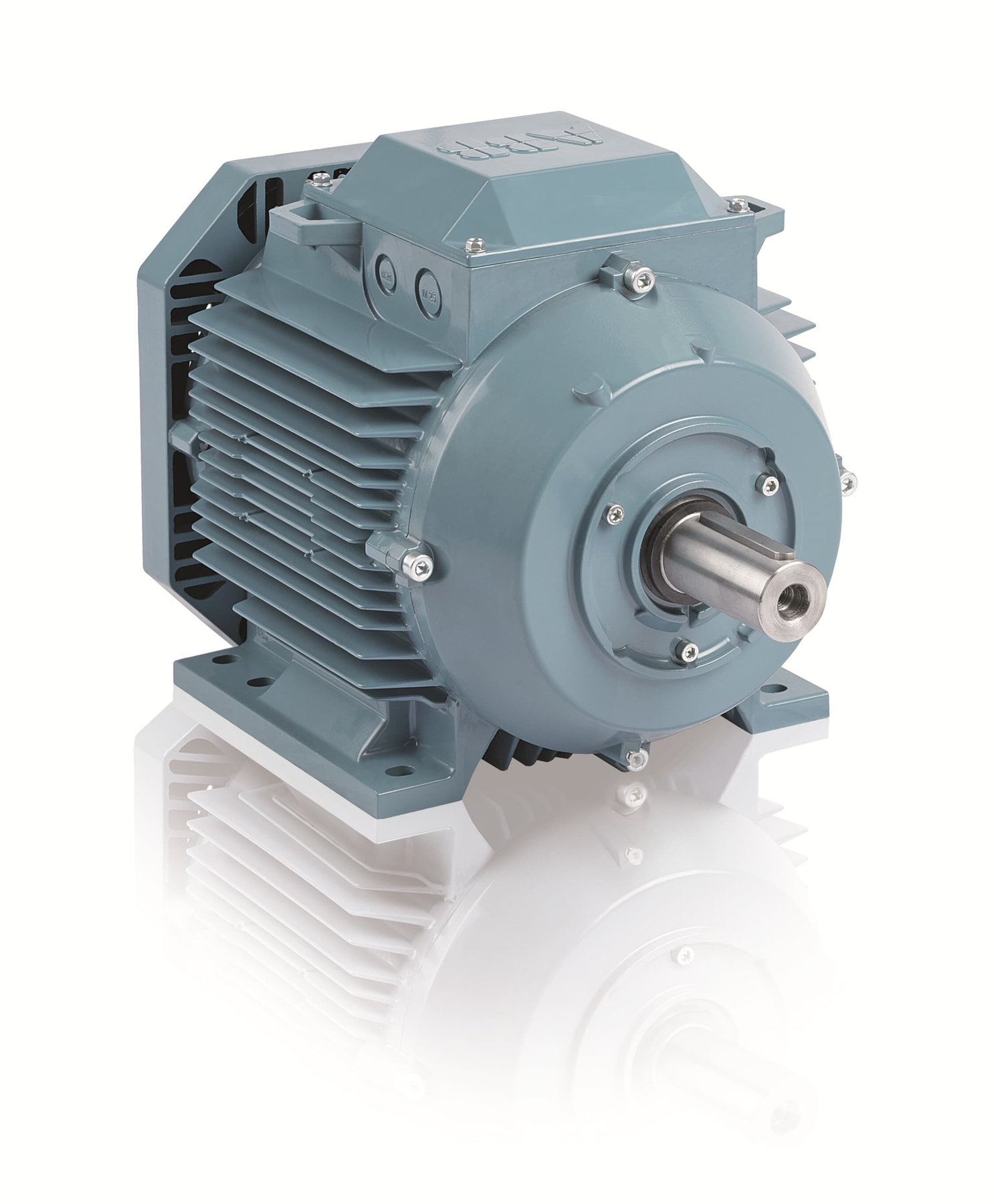

ABB M3AA200MLC4

Series: Other models

Source: https://new.abb.com/drives/sv/artiklar/produktbilder-materia

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M3AA200MLC4 is a three-phase induction motor from the ABB range. The rated output is 48 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 200 M in foot-mounted form. The protection class is IP55. The efficiency is 93.6 per cent at full load, 94.1 per cent at 75 per cent load and 92.6 per cent at half load. The motor weighs 270 kg. At full load it delivers 312 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Sweden. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS/NZS 1359.102.3:2000. Rated output across the ABB range ranges from 0.75 to 185 kW; the M3AA200MLC4 sits in the lower part of that range with 48 kW. Its immediate neighbours are the M3KP280SMB8 below it with 45 kW and the M2BA 250SMA 2G above it with 55 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output48 kWcorrect

Dimensions and weights

Weight270 kgcorrect

Electrical data

Number of poles4correct
Protection classIP55correct
Frame size200 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load93.6 %correct
Efficiency at 75 % load94.1 %correct
Efficiency at half load92.6 %correct

Origin and approval

Country of manufactureSwedencorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the ABB M3AA200MLC4 have?

The ABB M3AA200MLC4 delivers 48 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
