ABB M3AA180L4

Series: Other models

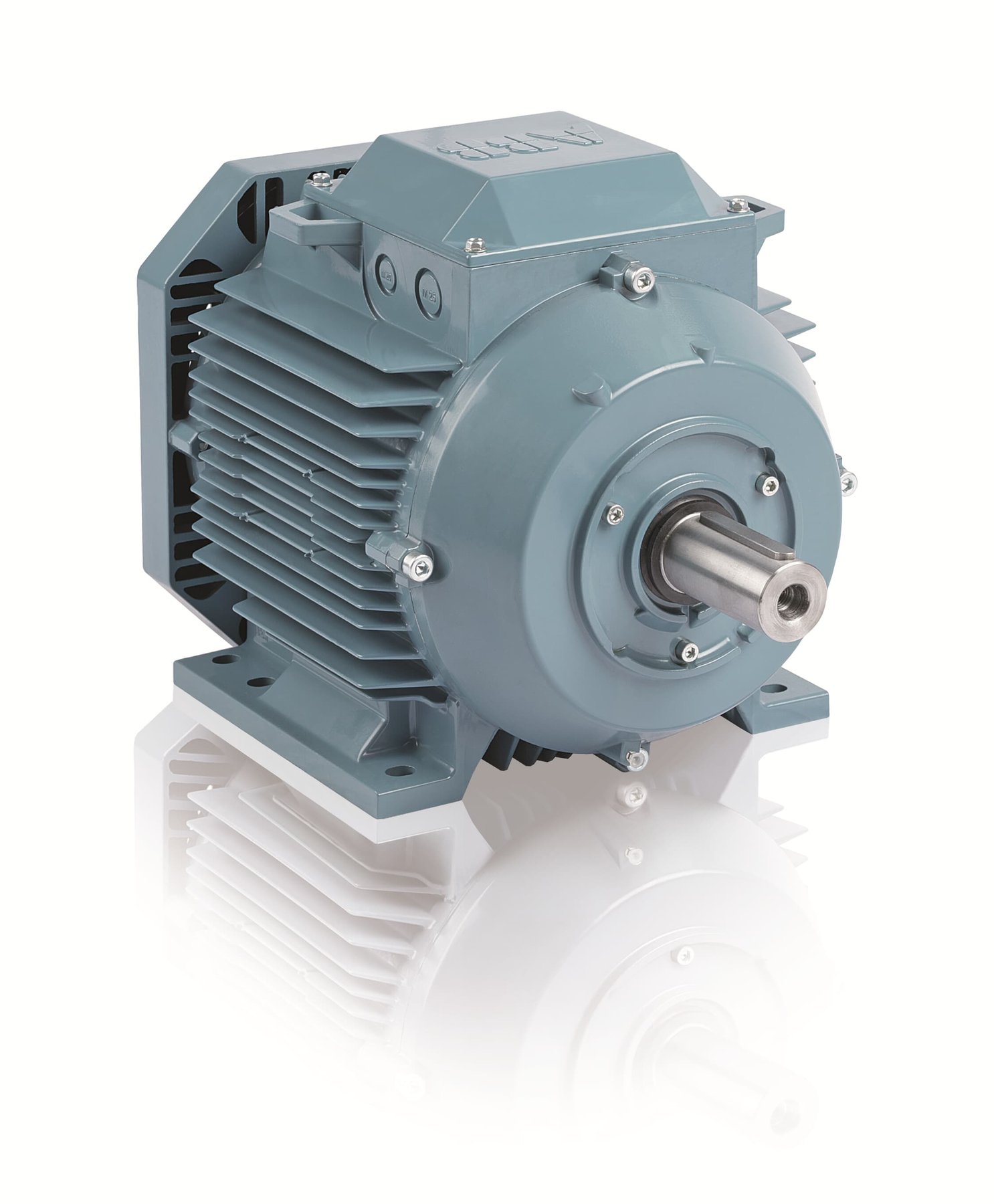

The photo shows the M3ARF/S160L8 from the same series. Source: https://new.abb.com/drives/sv/artiklar/produktbilder-materia

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

ABB lists the M3AA180L4 as a three-phase induction motor. The rated output is 22 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 180. The protection class is IP55. The efficiency is 93.3 per cent at full load, 93.9 per cent at 75 per cent load and 93.7 per cent at half load. The motor weighs 161 kg. At full load it delivers 143 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Sweden. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3AA180L4 sits at the bottom of that range with 22 kW. Its immediate neighbours are the M3KP225SMA8 below it with 18.5 kW and the M3AA 160MLE 2G above it with 27 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output22 kWcorrect

Dimensions and weights

Weight161 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection class55correct
Frame size180correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load93.3 %correct
Efficiency at 75 % load93.9 %correct
Efficiency at half load93.7 %correct

Origin and approval

Country of manufactureSwedencorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct
