ABB M3AA 90L 2

Series: M3AA

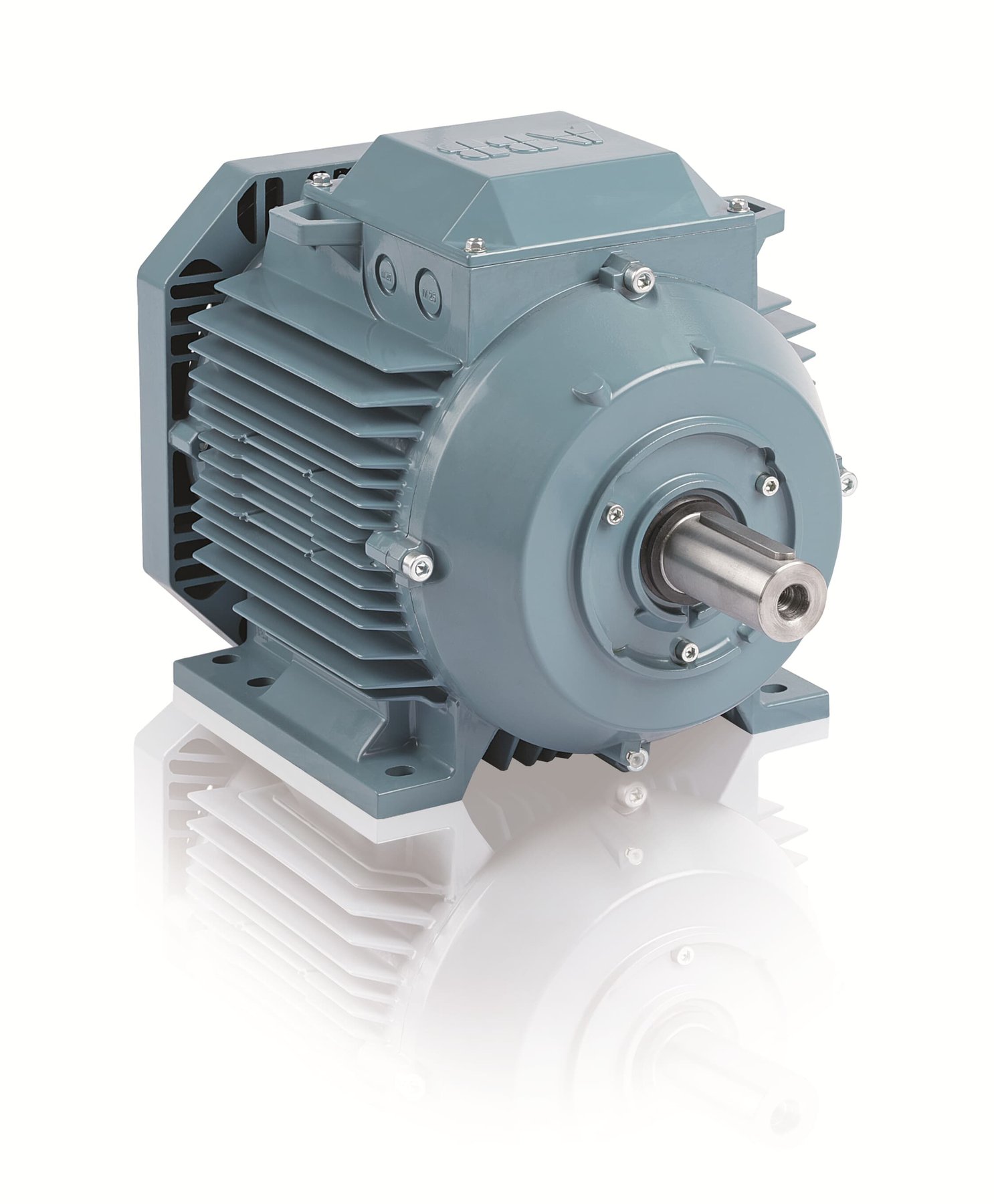

The photo shows the M3AA 160MLD 2K from the same series. Source: https://new.abb.com/drives/sv/artiklar/produktbilder-materia

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M3AA 90L 2 is a three-phase induction motor from the ABB range. The rated output is 1.5 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 90 L in foot-mounted form. The protection class is IP55. The efficiency is 84.1 per cent at full load, 84.3 per cent at 75 per cent load and 82.2 per cent at half load. The motor weighs 16 kg. Mounting arrangements to IEC 60034-7: B3, B5, B34, B35 and B14. Stated countries of manufacture: China and Spain. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3AA 90L 2 sits at the bottom of that range with 1.5 kW. Its immediate neighbours are the M3VRF/S80B2 below it with 1.1 kW and the M3BP 112MJ 6L above it with 2 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output1.5 kWcorrect

Dimensions and weights

Weight16 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP55, IP55correct
Frame size90 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B34, B35, B14correct
Efficiency at full load84.1 %correct
Efficiency at 75 % load84.3 %correct
Efficiency at half load82.2 %correct

Origin and approval

Country of manufactureChina, Spaincorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3AA 90L 2 have?

The ABB M3AA 90L 2 delivers 1.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
