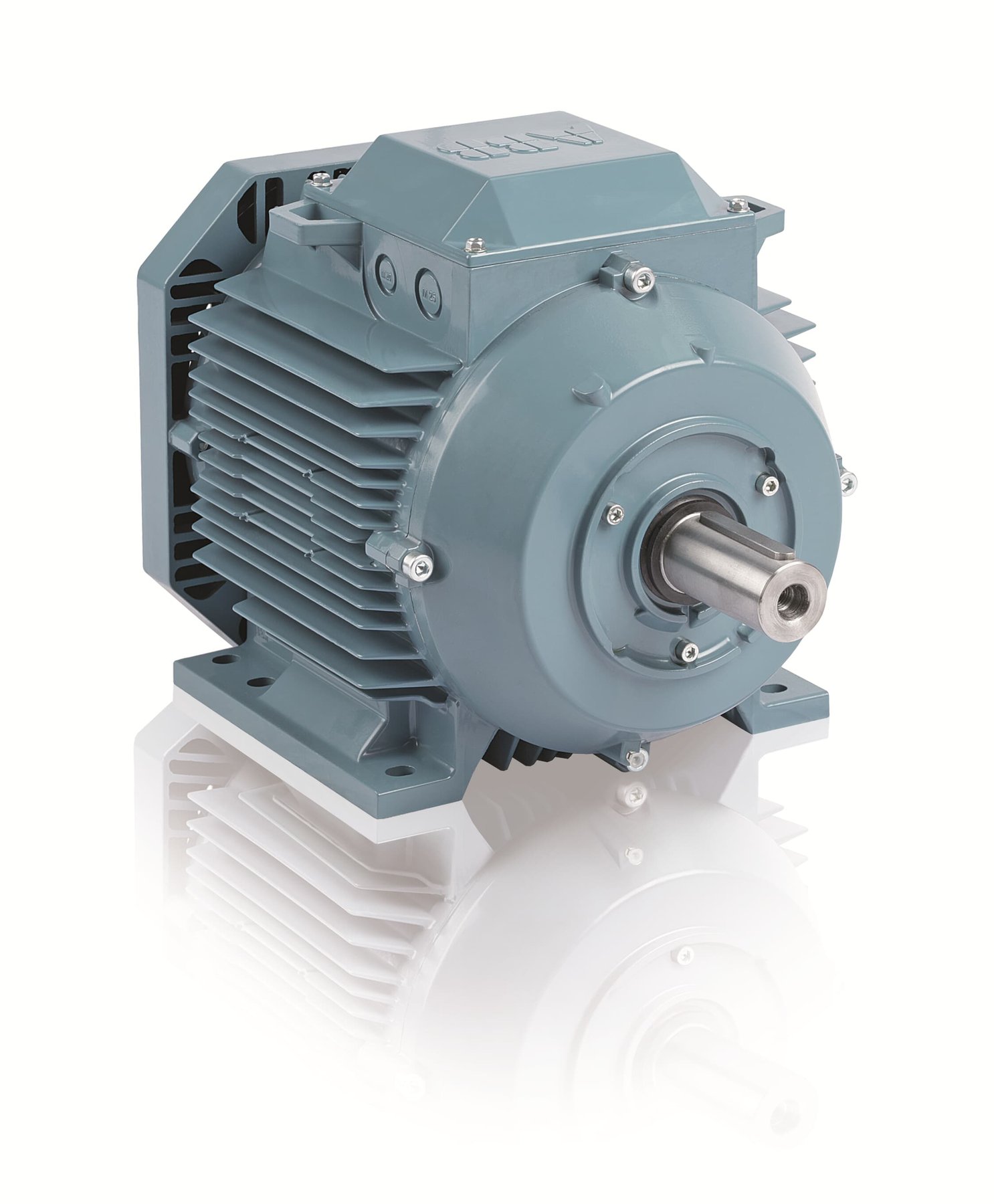

ABB M3AA 100LE 6K

Series: M3AA

Source: https://new.abb.com/drives/sv/artiklar/produktbilder-materia

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M3AA 100LE 6K is a three-phase induction motor built by ABB. The rated output is 1.1 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 100. The protection class is IP55, IP56, IP65 and IP66. The efficiency is 87.2 per cent at full load, 88 per cent at 75 per cent load and 87.2 per cent at half load. Stated countries of manufacture: India, China, Poland and Finland. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3AA 100LE 6K sits at the bottom of that range with 1.1 kW. Its immediate neighbours are the M3VRS80 below it with 0.75 kW and the M2AA112 above it with 1.5 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output1.1 kWcorrect

Electrical data

Number of poles6correct
Protection classIP55, IP56, IP65, IP66correct
Frame size100correct
Mounting (IEC 60034-7)B3, B5, B8, B14, B34, B35, V1, V3, V5, V6, V16correct
Efficiency at full load87.2 %correct
Efficiency at 75 % load88 %correct
Efficiency at half load87.2 %correct

Origin and approval

Country of manufactureIndia, China, Poland, Finlandcorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M3AA 100LE 6K have?

The ABB M3AA 100LE 6K delivers 1.1 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
