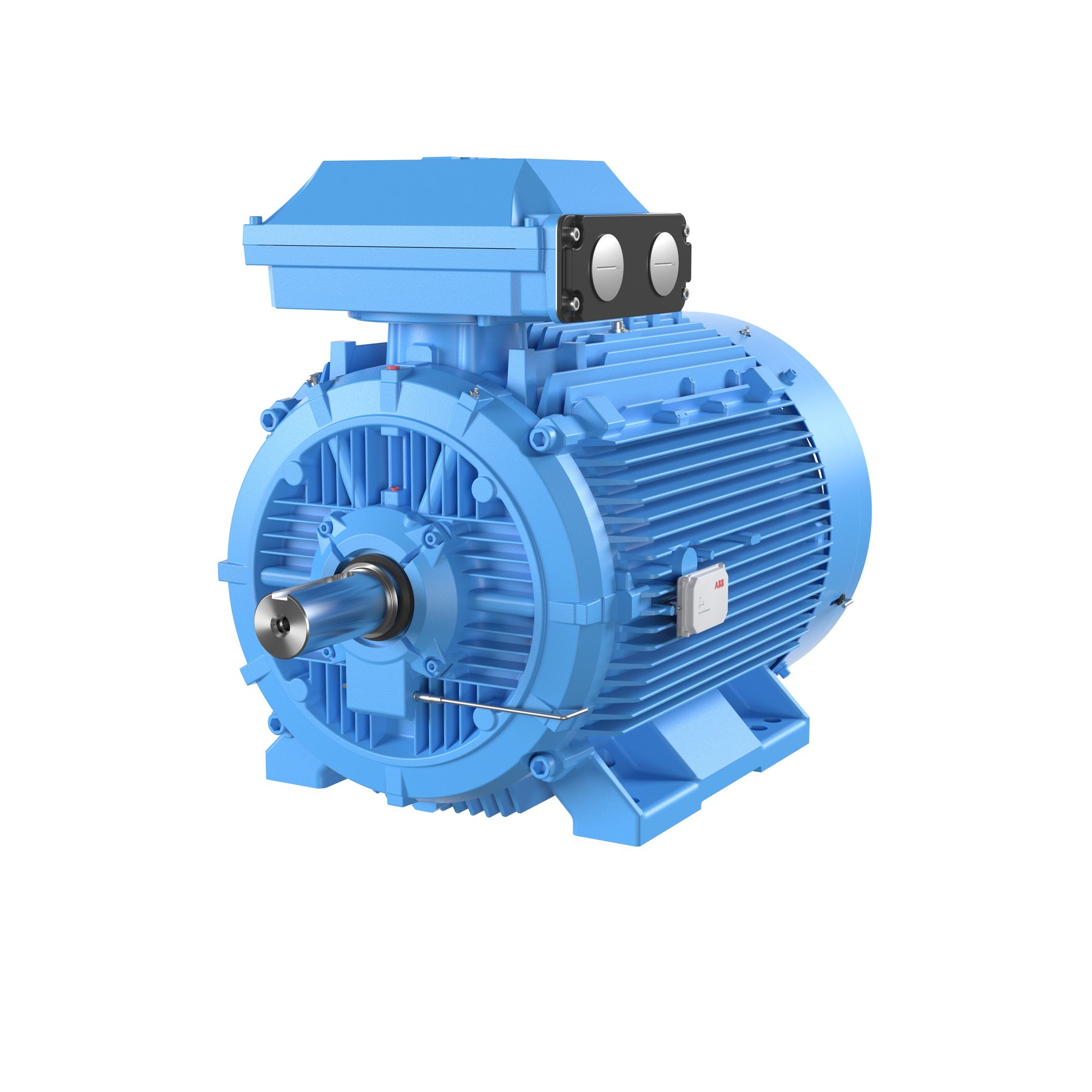

ABB M2QA132

The ABB M2QA132 is a three-phase induction motor built by ABB. The rated output is 2.2 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The rated voltage is 400 V. The housing is frame size 132 S in foot-mounted form. The protection class is IP55. The efficiency is 80 per cent at full load, 81.8 per cent at 75 per cent load and 79.9 per cent at half load. The motor weighs 56 kg. At full load it delivers 29.6 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B14, B35 and B34. The motor is built in China. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M2QA132 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the M3BP 112MJ 6L below it with 2 kW and the M2BA 100 LE 4B above it with 3 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 25 verified figures from 1 source are on file.
