ABB M2BAX90SLA6

Series: Other models

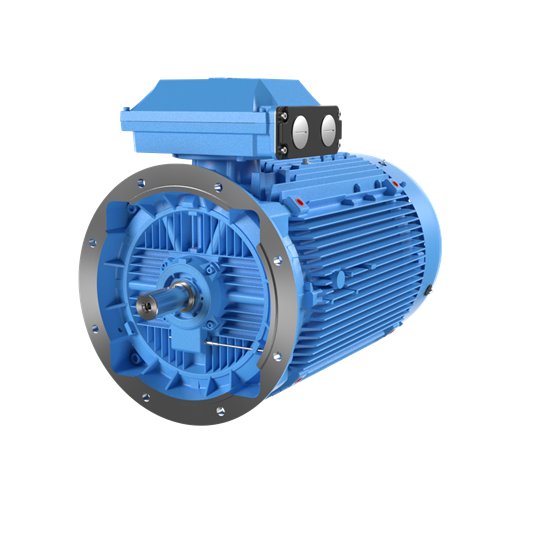

The photo shows the M3BP 280SMA 8G from the same series. Source: https://new.abb.com/products/3GBL312812-BDC/3gbl312812-bdc

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The M2BAX90SLA6 from ABB is a three-phase induction motor. The rated output is 0.75 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 90. The protection class is IP55, IP56, IP65 and IP66. The efficiency is 79.2 per cent at full load, 78.3 per cent at 75 per cent load and 75.5 per cent at half load. Stated countries of manufacture: Sweden, India, Poland, Finland and China. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M2BAX90SLA6 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the M2AA90 above it with 1.1 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 20 verified figures from 1 source are on file.

Technical data

Engine

Rated output0.75 kWcorrect

Electrical data

Number of poles6correct
Protection classIP55, IP56, IP65, IP66correct
Frame size90correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B14, B34, B35, V1, V3, V5, V6, V15, V18, V19, V36correct
Efficiency at full load79.2 %correct
Efficiency at 75 % load78.3 %correct
Efficiency at half load75.5 %correct

Origin and approval

Country of manufactureSweden, India, Poland, Finland, Chinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M2BAX90SLA6 have?

The ABB M2BAX90SLA6 delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
