ABB M2BA280SMB4

Series: Other models

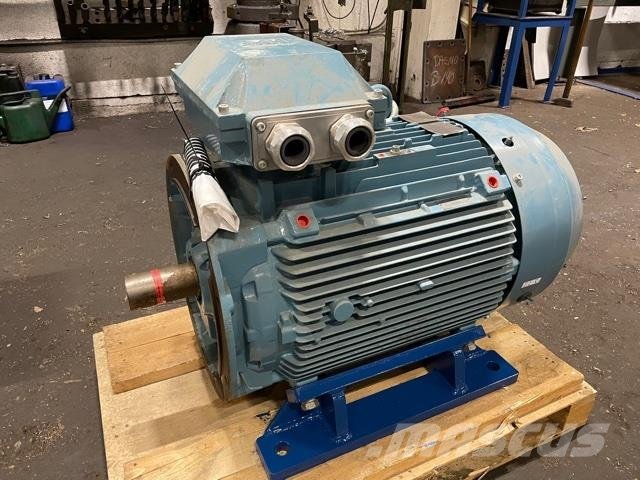

The photo shows the M3JM 280SMC 4 from the same series. Source: https://www.mascus.ie/construction/engines-construction/othe

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M2BA280SMB4 is a three-phase induction motor from the ABB range. The rated output is 90 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 280. The protection class is IP55, IP56 and IP65. The efficiency is 94.7 per cent at full load, 95 per cent at 75 per cent load and 94.8 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: Finland and China. The figures come from the Australian MEPS register under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M2BA280SMB4 sits in the middle of that range with 90 kW. Its immediate neighbours are the M3BP225SMD2 below it with 80 kW and the M3AA250SMC2 above it with 94 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output90 kWcorrect

Electrical data

Number of poles4correct
Protection classIP55, IP56, IP65correct
Frame size280correct
Mounting (IEC 60034-7)B3, B5, B8, B35, V1, V3, V5, V6correct
Efficiency at full load94.7 %correct
Efficiency at 75 % load95 %correct
Efficiency at half load94.8 %correct

Origin and approval

Country of manufactureFinland, Chinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M2BA280SMB4 have?

The ABB M2BA280SMB4 delivers 90 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
