ABB M2ARS100

Series: Other models

Source: https://new.abb.com/news/detail/120234/abb-research-shows-en

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The M2ARS100 from ABB is a three-phase induction motor. The rated output is 0.75 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The rated voltage is 400 V. The housing is frame size 100 L in foot-mounted form. The protection class is IP55. The efficiency is 71.5 per cent at full load, 63.6 per cent at 75 per cent load and 59.6 per cent at half load. The motor weighs 23 kg. At full load it delivers 10 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B14, B35 and B34. The motor is built in Spain. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M2ARS100 sits at the bottom of that range with 0.75 kW. Its immediate neighbours are the M2AA90 above it with 1.1 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output0.75 kWcorrect

Dimensions and weights

Weight23 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles8correct
Protection classIP55correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B35, B34correct
Efficiency at full load71.5 %correct
Efficiency at 75 % load63.6 %correct
Efficiency at half load59.6 %correct

Origin and approval

Country of manufactureSpaincorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the ABB M2ARS100 have?

The ABB M2ARS100 delivers 0.8 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

M2/M3

M2AA100

M2AA112

M2AA132

M2AA160

M2AA180

M2AA200

M2AA225

M2AA250

M2AA90

M2ARF100

M2ARF90

Sources: [1]

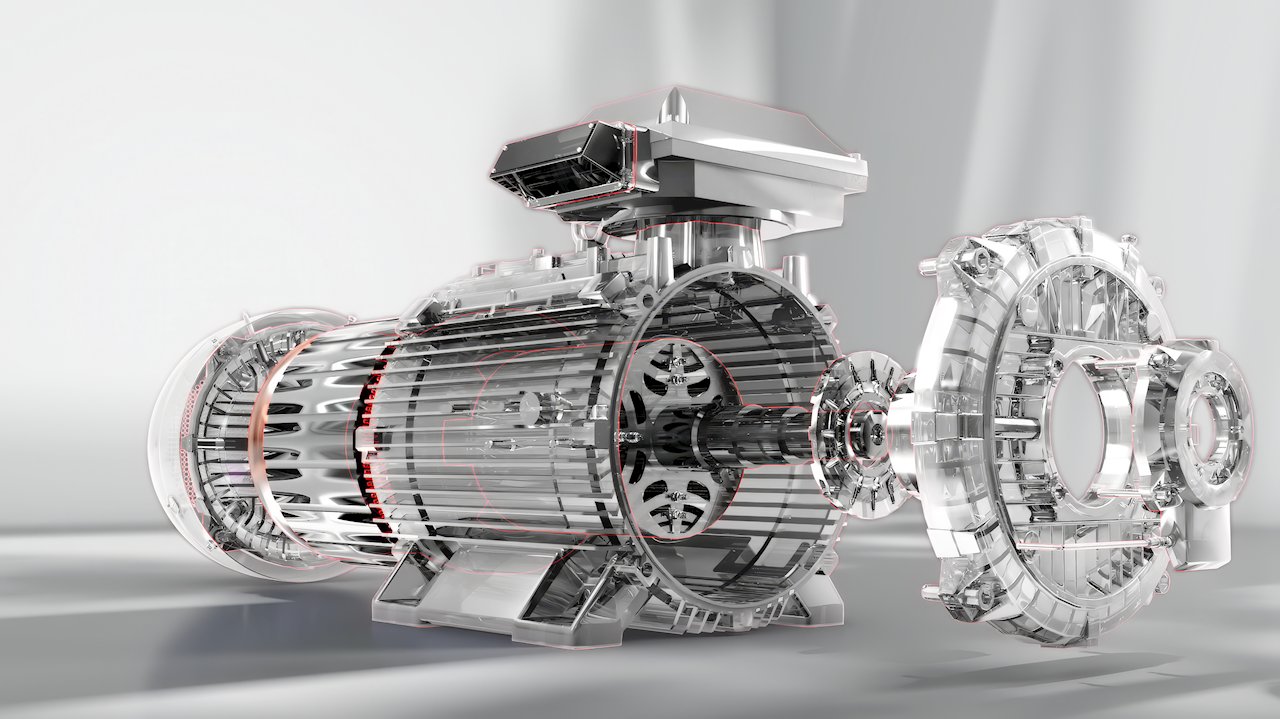

Electric motor in 3D section
